The HOWO articulated manlift truck with insulated arm is a professional engineering special truck that integrates excellent technical performance and safety design. Built on the HOWO light duty chassis, the truck is equipped with a ISF3.8s3154 engine with a maximum output power of 154 HP and a total vehicle mass of 8300kg, which is flexible and powerful. The HOWO light duty aerial platform truck has a maximum working height of 18 meters and a maximum working radius of 6 meters, and adopts a hydraulic static balance system to ensure stability.
Kapasitas kerja :
250 kg,18 mJenis kabin :
HOWO single cabinSistem penggerak :
4x2Jarak sumbu roda (mm) :
3800Khusus untuk mesin :
ISF3.8S3154Kotak roda gigi :
WLY6TS55,6 forwards & 1 reversesGandar depan (Kg) :
4200Gandar belakang (Kg) :
7200The HOWO articulated manlift truck with insulated arm is a professional engineering special truck that integrates excellent technical performance and safety design. Built on the HOWO light duty chassis, the truck is equipped with a ISF3.8s3154 engine with a maximum output power of 154 HP and a total vehicle mass of 8300kg, which is flexible and powerful. The HOWO light duty aerial platform truck has a maximum working height of 18 meters and a maximum working radius of 6 meters, and adopts a hydraulic static balance system to ensure stability.
Its unique H-type hydraulic outrigger design is equipped with a two way hydraulic locking mechanism to ensure stability during operation. The HOWO manlifter truck is also equipped with a manual and wireless remote control dual operating system, with a platform rated load of 200 kg, 360° hydraulic rotation, and built-in multiple safety protection devices, such as automatic out-of-bounds limit, emergency stop device and leakage protection.

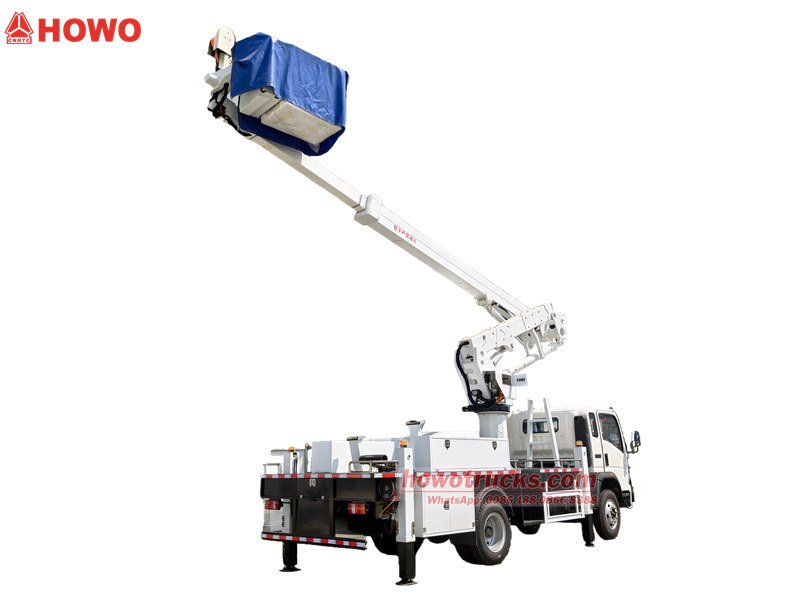

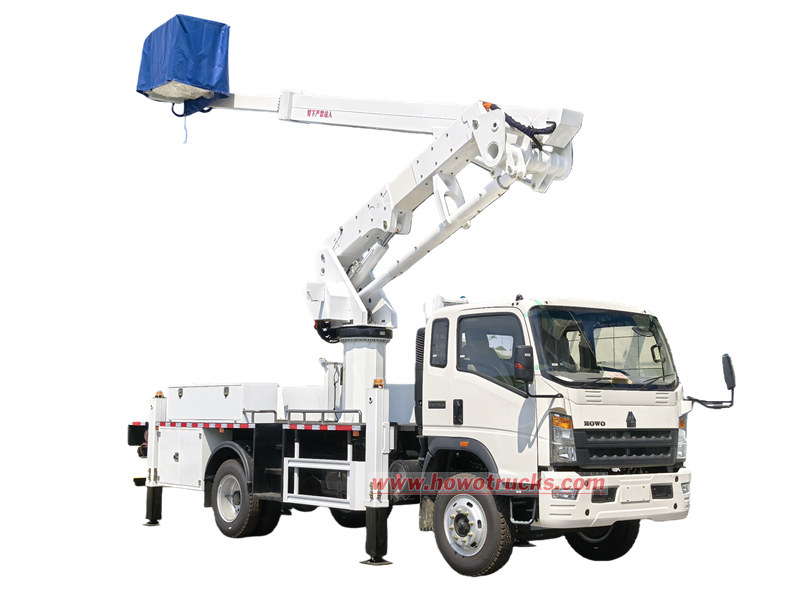

*HOWO Light 18m Aerial Platform Truck *

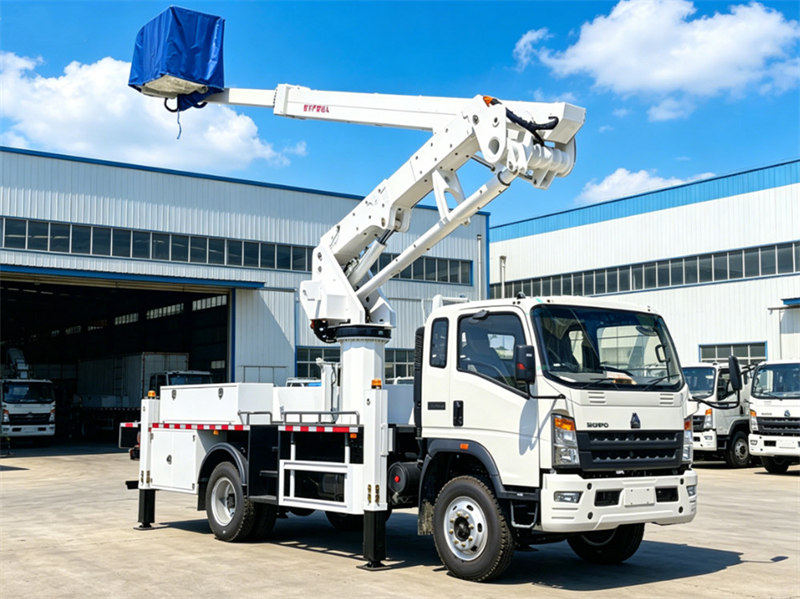

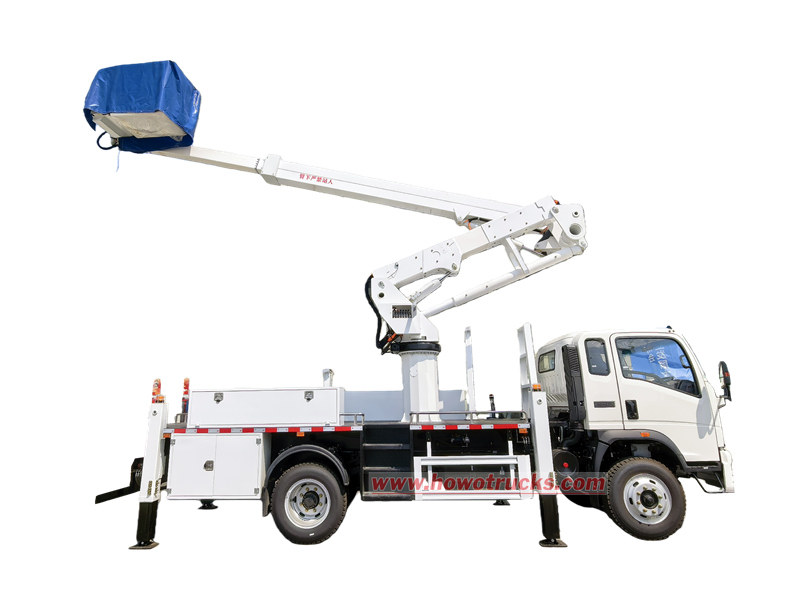

*HOWO 18 meter Articulated Manlift Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
✦Ⅰ.Introduction Of HOWO Insulated Aerial Platform Truck « « «
Manufacturer: CS Trucks Group

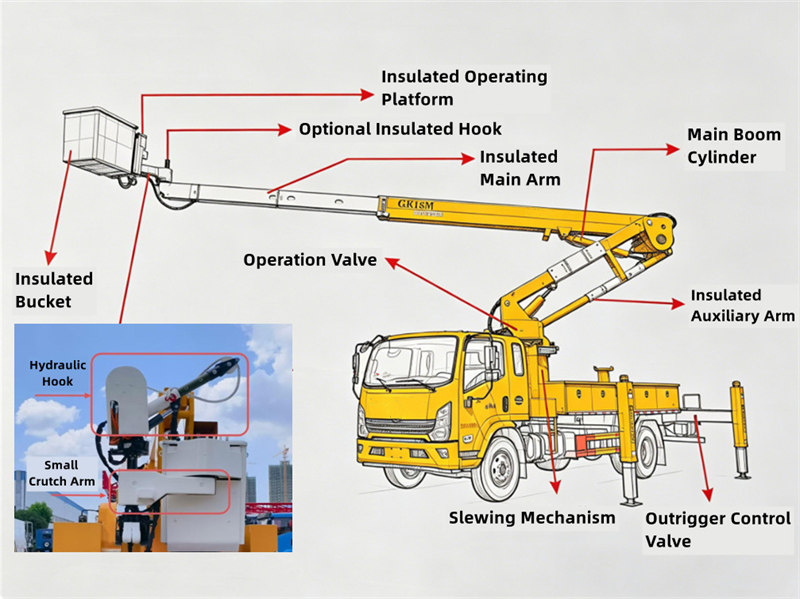

Features:
1. Truck Chassis: HOWO light truck chassis, LHD, 4x2, offroad 4X4 model optional
Top Chinese ISF3.8s3154 diesel engine 154HP, powerful and fuel consumption
2. Aerial Boom Device: Combined boom device with folding type and telescoping type
Efficiently working height can be up to 18m
3. Insulated Function: Combined boom with final boom based on Fiberglass material
Fiberglass material bucket with efficiently loading weight 280kg

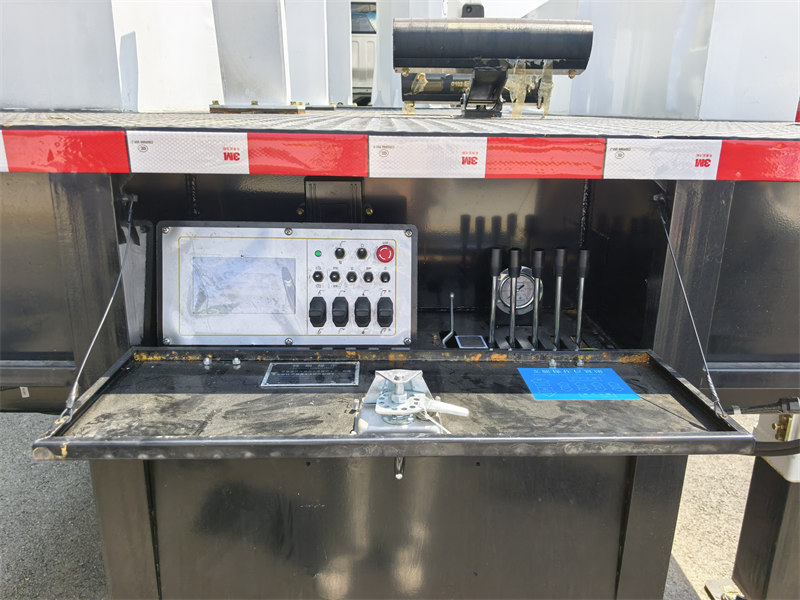

4. Control Device: Rear mounted hydraulic control valves and PLC electric control panel
Emergency Stop Button for safety guarantee
Emergency electric motor for safety usage when truck engine flame out
5. Specialized Equipment: Optional auxiliary lifting device for heavy good loading at high altitude 500kg volume
✦Ⅱ.Paraform For HOWO Aerial Platform Truck « « «
Best Choice,Howo Trucks
|
HOWO 18m aerial platform truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
6050*2000*3000mm |
|
|
GVW |
7300kg |
|
|
Curb weight |
4365kg |
|
|
Chassis brand |
HOWO |
|
|
Traction type |
4X2 |
|
|
Up-parts specification |
||
|
Arm |
Model |
Folding Arm + Telescopic Arm |
|

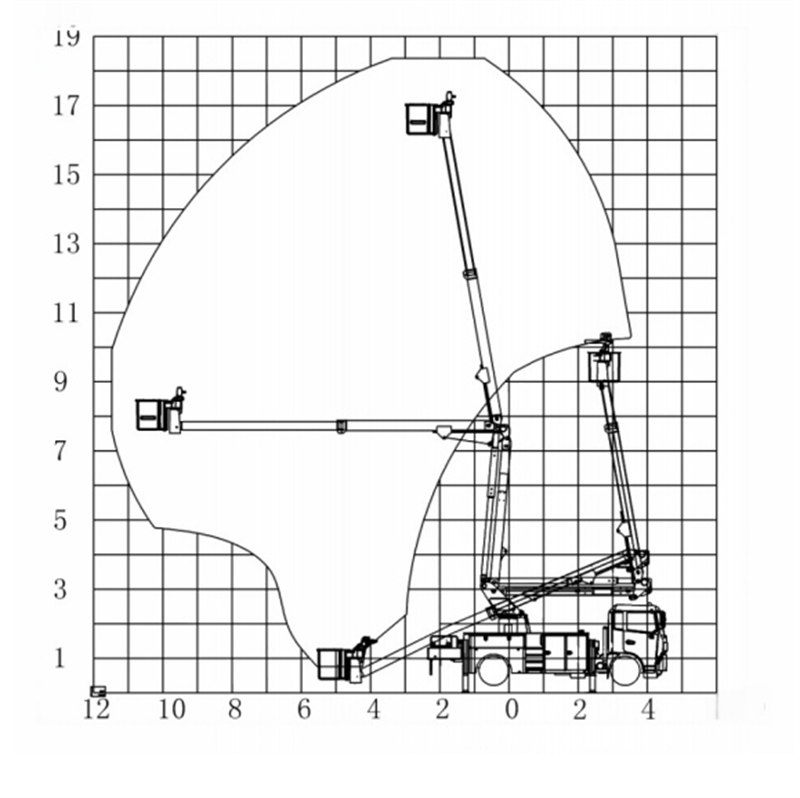

Max working height |
18m |
|
|
Maximum operating range |
7m |
|
|
Maximum operating range height |
9m |
|
|
Maximum operating height operating range |
2.2m |
|
|
Elevation angle |
-12°～80° |
|
|
Working angle |
360° |
|
|
Landing leg |
Type |
H-type |
|
Longitudinal span |
2430mm |
|
|
Transverse span |
1670/2780mm |
|
|
Hanging basket |
Rated load |
≤200kg |
|
Dimension |
1080×610×1100mm |
|
|
Leveling type |
Mechanical rod |
|
|
Hydraulic system |
Hydraulic valve |
Manual |
|
Working pressure |
16Mpa |
|
|
Oil cylinder |
Equipped with lock function |
|
|
Operation type |
Both hanging basket and revolving mechanism |
|
|
Main structure |
Material |
High-quality carbon steel and insulated fiberglass (Insulation ≥45kV) |
|
Tool box |
Mould stamping door with stainless steel door lock |
|
|
Fencing |
Stainless steel tube |
|
|
Steps |
With steps on drivers’ side |
|
|
Guard railing |
High quality cold bending carbon steel profile; High strength |
|
|
Wheel casing |
Injection mold molding, beautiful, high strength |
|
|
Rotary table |
Supporting Boom |
Low alloy steel plate welding |
|

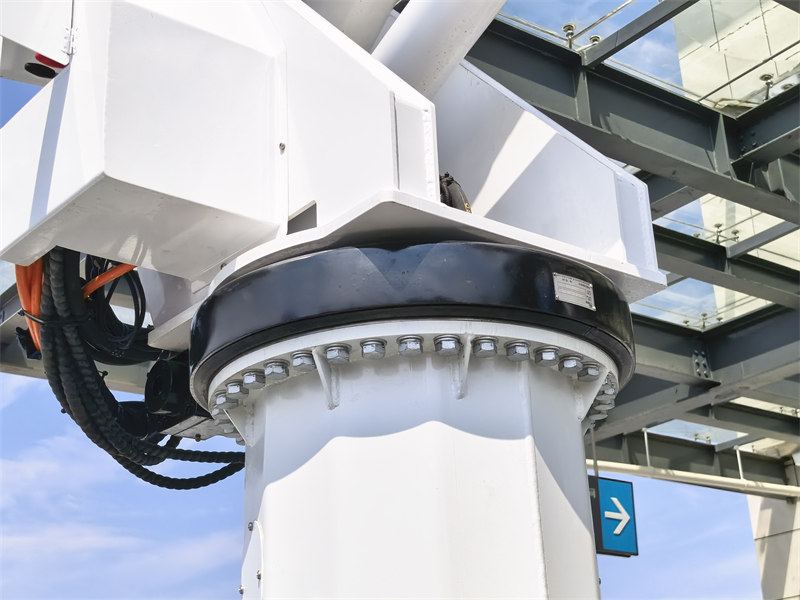

Slewing bearing |
Single row of four - point contact ball belt outer teeth |
|
|
Reduction gears |
Planetary gear type |
|
|
Motor |
Axial piston motor |
|
|
Chassis Description |
||
|
Chassis model |
HOWO light-duty |
|
|
Cab |
single row, with A/C |
|
|
Wheelbase |
3360mm |
|
|
Tire specification |
7.50R16 |
|
|
Tire quantity |
6+1 units |
|
|
Engine |
Engine model |
ISF3.8s3154 |
|
Emission level |
Euro 3 |
|
|
Displacement/output |
3760ml/88kw |
|
|
Horse power |
154HP |
|
|
Gear box |
Model |
WLY6TS55C |
|
Number of gears |
5 forward gears & 1 reverse |
|
|
Brake system |
Full air brake |
|
|
Axle |
Front |
3.0T |
|
Rear |
5.8T |
|
|
Suspension |
Front |
Leaf springs |
|
Rear |
Leaf springs |
|
|
Fuel tanker |
Type |
Carbon steel tanker,with lockable cap |
|
Capacity |
140L |
|
✦Ⅲ.Feature For HOWO 18m Manlift Truck « « «
Insulation Performance:
◆Features a 1m effective insulation pre-extension section, ensuring operator safety by preventing them from being unable to work due to insufficient insulation extension length.
◆The insulated arm utilizes a wet-winding process with glass fiber, resulting in high strength and enhanced insulation performance.
Upper Structure：
◆The hydraulic system uses imported components, making the vehicle's performance more stable.

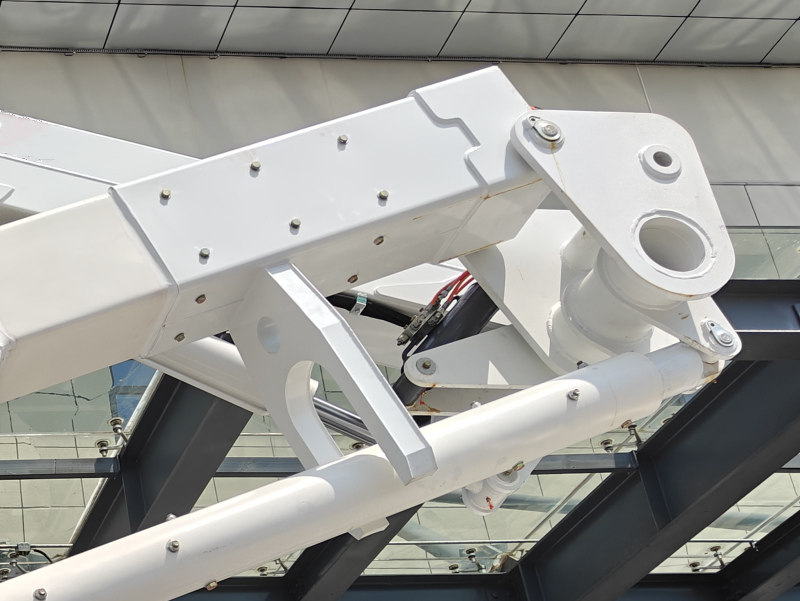

◆It adopts a hybrid folding and telescopic boom, which has strong obstacle-crossing ability, can quickly reach the work point, and is convenient, fast, simple and practical.
Work Platform:
◆ Rotates ±180°
◆ Bucket lifting capacity of 0.3-0.4m, increasing the working range and improving work efficiency.
◆ Platform has steps for easy access for workers.
◆ Equipped with a rain cover to effectively protect the insulation of the work platform.
✦Ⅳ.Safety Device For HOWO Manlift Truck « « «
Safety Testing
1. Before leaving the factory, the equipment undergoes a dynamic load test with a coefficient of 1.25 times the rated load and a static load test with a coefficient of 1.5 times the rated load.
2. All key structural components undergo tens of thousands of fatigue cycles and destructive testing to ensure the equipment's safety and reliability.
3. Comprehensive safety devices are included, including cylinder and outrigger retraction devices, access interlocks, emergency stop devices, soft leg protection devices, extreme deceleration, and emergency manual override systems.
4. Key structural components are all welded from low-alloy, high-strength steel for high strength and light weight. These components have been thoroughly verified through numerous tests to ensure precise matching of the structural, electrical, and hydraulic systems.
|
Name |
Brief Description |
|
Automatic interlock device for getting on and off the vehicle |
Used for interlocking when getting on and off the vehicle to prevent tripping hazards caused by misoperation. |
|
Hydraulic cylinder anti-reverse device |
Safety protection device to prevent the hydraulic cylinder from retracting and the boom from falling in the event of a hydraulic line malfunction. |
|
Outrigger anti-retraction device |
When the system suddenly loses pressure, the outrigger cylinders lock to prevent the vehicle from overturning. |
|
Emergency electric hydraulic pump |
In the event of a chassis engine or hydraulic main pump failure, emergency power is provided to bring personnel back to the ground. |
|
Emergency stop device |
Used for emergency stop operations |
|
Vehicle Levelness Tester |
It can detect the tilt status of the entire vehicle in both lateral and longitudinal directions. |
|
Engine ignition and shutdown |
The engine can be ignited and shut down at the turntable and platform. |
|
Driving and power take-off interlock |
To avoid equipment damage or safety accidents caused by misoperation |
Level Indicator Testing Unit

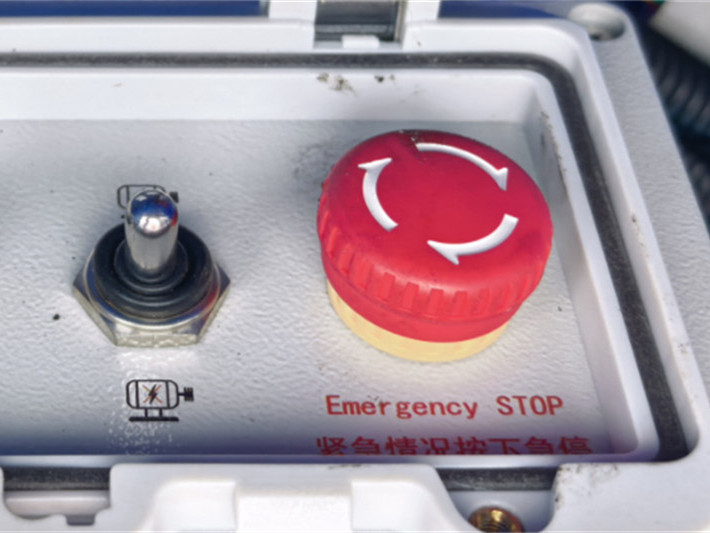

Emergency Stop Device

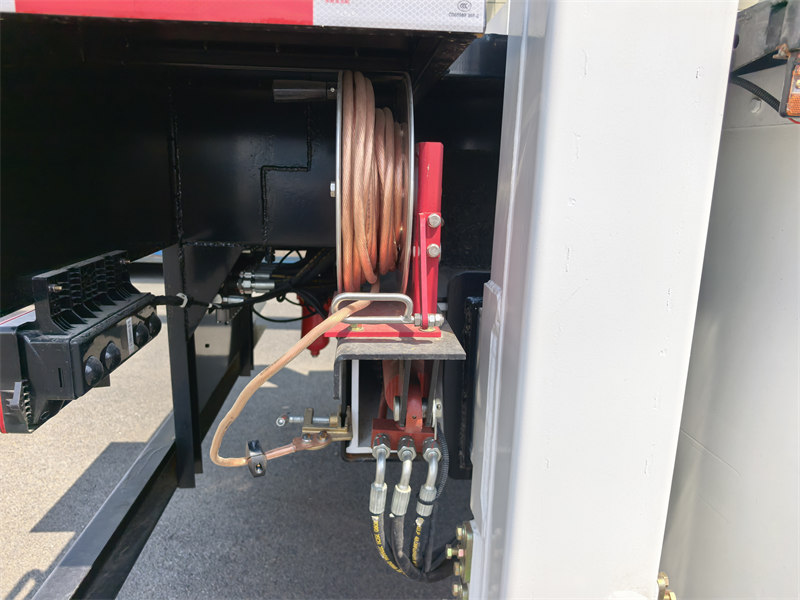

Ground Cable Reel
Cylinder Anti-Retraction Device
Upper & Lower Control Interlock

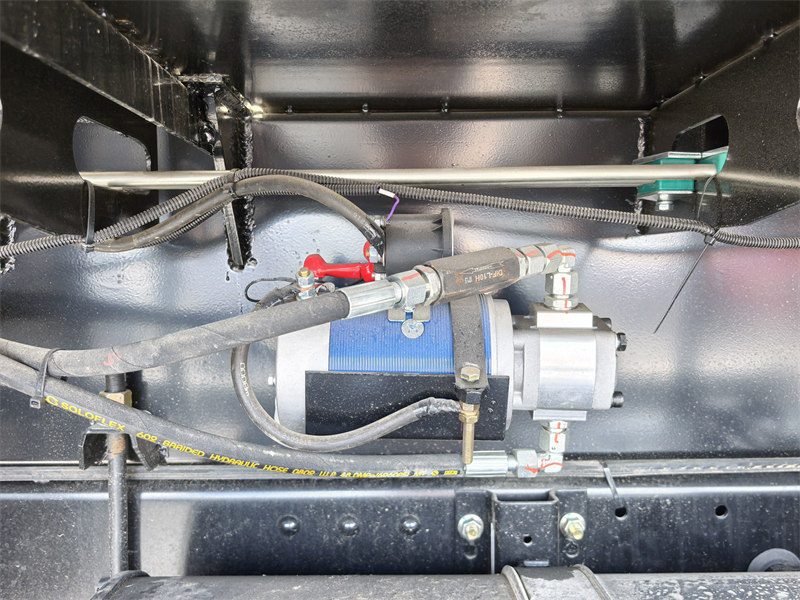

Emergency Electric Hydraulic Pump
✦Ⅴ.Operation System For HOWO Aerial Platform Truck « « «

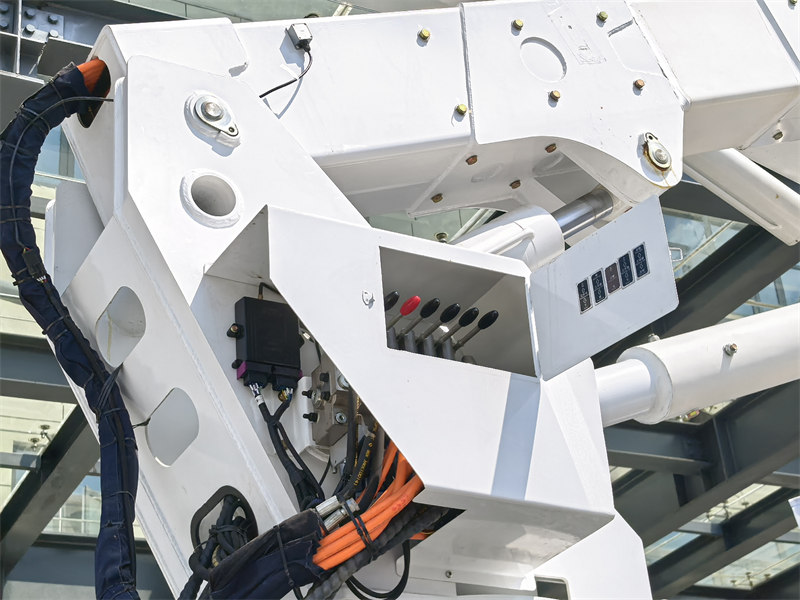

◆ Utilizes a 3D multi-functional handle: Controls upper arm raising/lowering, upper arm extension/retraction, turntable rotation, and other movements, easily achieving omnidirectional movement of the work platform.

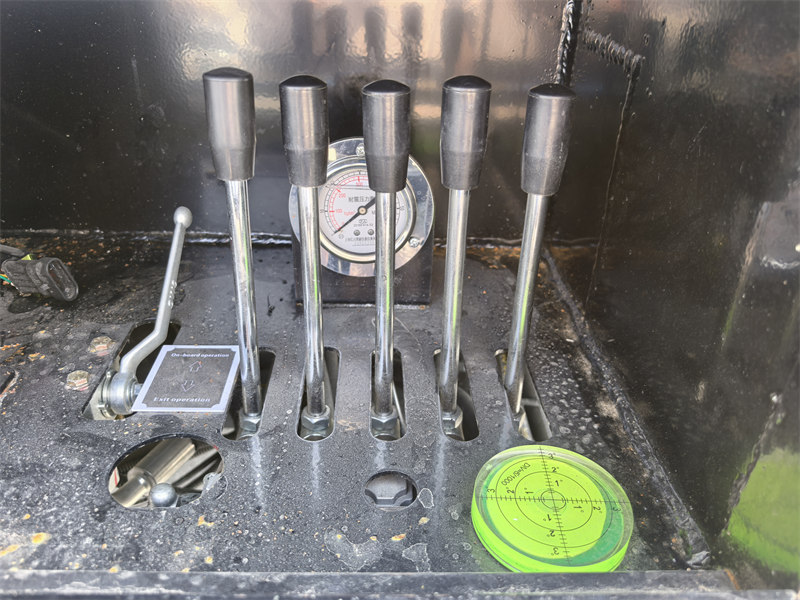

◆ The fully hydraulic multi-way manual proportional valve is simple to operate, easy to control, and has excellent speed regulation performance. It enables electro-hydraulic proportional speed regulation of various movements during operation, ensuring smooth, shock-free, and vibration-free action.
◆ The outriggers are located at the rear of the vehicle, facilitating operator observation of the working status and avoiding hazards caused by blind spots, thus improving safety and comfort.
◆ The work platform is positioned on the walkway surface, making entry and exit safe and convenient.
◆ Concealed piping makes it more suitable for complex wiring operations.
