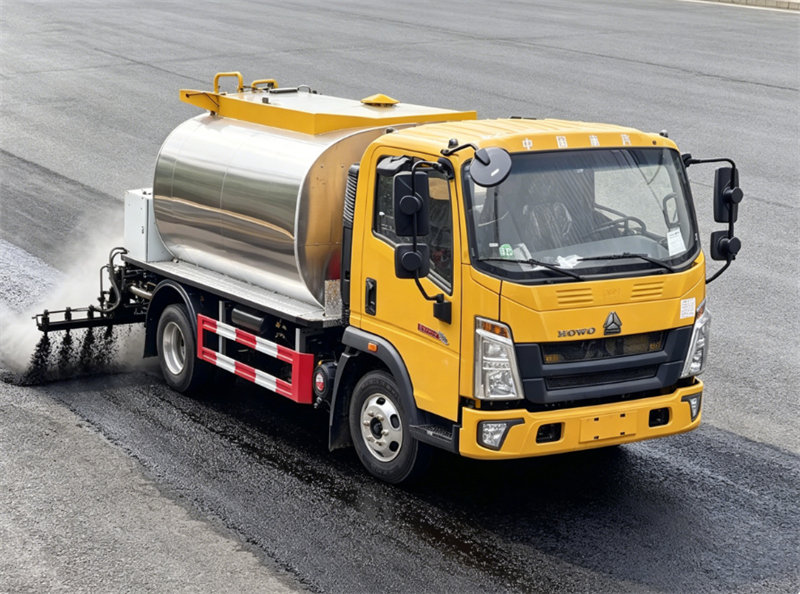

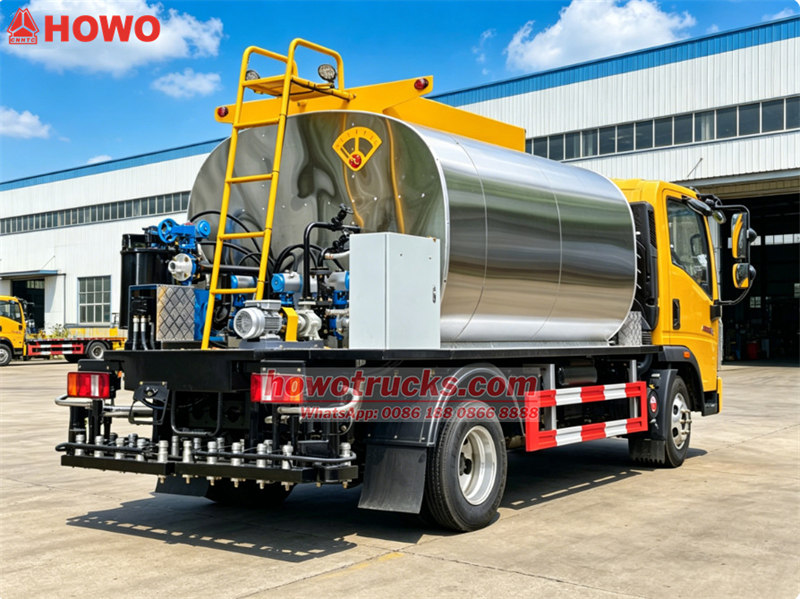

The core of the automatic bitumen distributor tanker truck is built on the proven HOWO light duty truck chassis. The solid combination of 2.5 tons on the front axle + 5 tons on the rear axle, with 7.50R16 tires (6 tires + 1 spare tire as standard), ensures stable driving and excellent passability on various paved roads. Equipped with China famous brand YC4E140-33 engine, its iconic low-speed and high-torque characteristics are the perfect partner for the Howo asphalt distributor truck's frequent starts and stops and stable and uniform speed driving during operations.
Kapasitas kerja :
5000LJenis kabin :
Howo light single cabin, with one sleeperSistem penggerak :
4x2Jarak sumbu roda (mm) :
3800Khusus untuk mesin :
YC4E140-33Kotak roda gigi :
WLY6TS55, 6 forwards & 1 reversesGandar depan (Kg) :
3500Gandar belakang (Kg) :
6000The core of the automatic bitumen distributor tanker truck is built on the proven HOWO light duty truck chassis. The solid combination of 2.5 tons on the front axle + 5 tons on the rear axle, with 7.50R16 tires (6 tires + 1 spare tire as standard), ensures stable driving and excellent passability on various paved roads. Equipped with China famous brand YC4E140-33 engine, its iconic low-speed and high-torque characteristics are the perfect partner for the Howo asphalt distributor truck's frequent starts and stops and stable and uniform speed driving during operations.
About the tank, our factory adopts an innovative 3 level layer composite structure, with a solid 4mm steel plate matrix to build the core, wrapped with a 50mm thick high-efficiency insulation layer, and finally sealed with a corrosion-resistant stainless steel shell. The cylindrical welded structure ensures uniform stress distribution, minimizes the risk of weld cracking, and provides long-lasting and reliable protection for road construction.
*Howo Heavy 6x4 Fuel Pump Tank Truck*
------------------------------------------------------------------
CS Trucks Group is professional manufacturer in Howo truck area,
guarantee all products Brand-New and High-Quality.
✦Ⅰ.Product Definition and Introduction « « «
Manufacturer: CS TRUCKS
Features:
1. Truck Chassis: SINOTRUK HOWO offroad truck chassis, 4x2, 4x4 and 6x6 model
YC model with 116HP, 140HP, 160HP or 180HP
Optional EURO 3/4/5 emission for different market
2. Tank material: Innovative three-layer composite structure
With a solid 4mm steel plate matrix to build the core
Wrapped with a 50mm thick high-efficiency insulation layer
3. Tanker Capacity: 4000L--20000L can be customized
4. Fire Pump: High viscosity insulation pump, flow rate 680L/min, working pressure 0.8MPa
Rated speed 584 r/min, viscosity 0.02-15 Pas
✦ Ⅱ.Product Parameter For Howo Asphalt Spreader Truck « « «
|

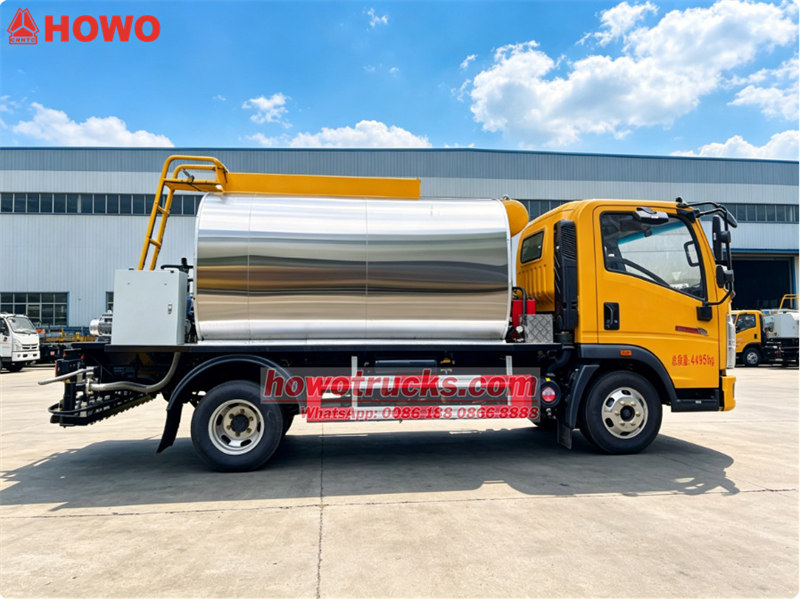

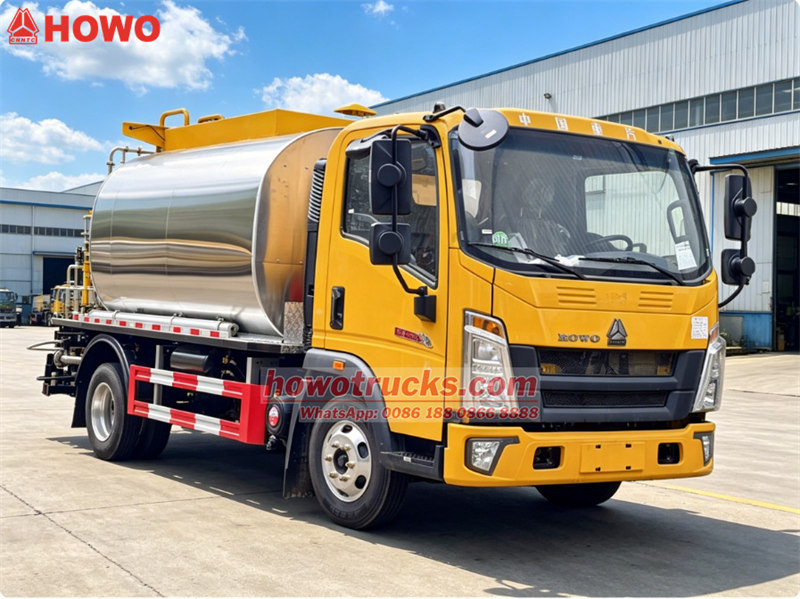

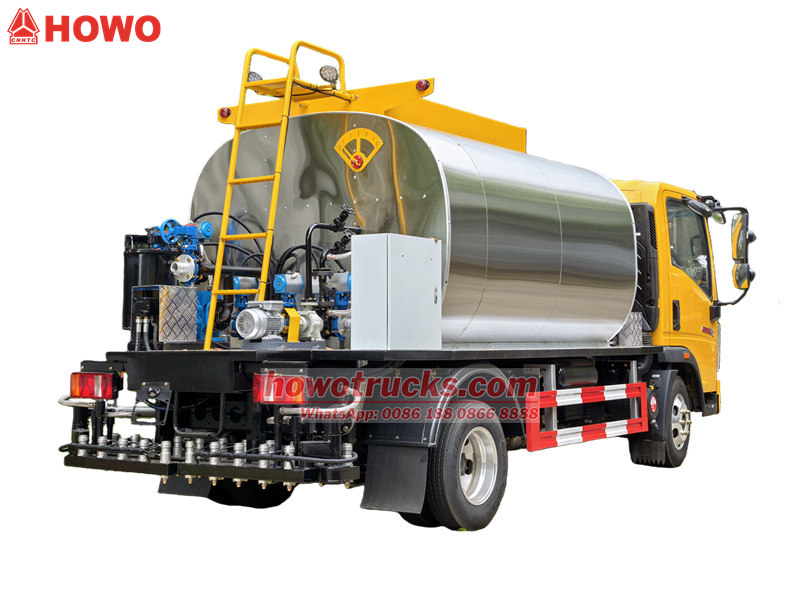

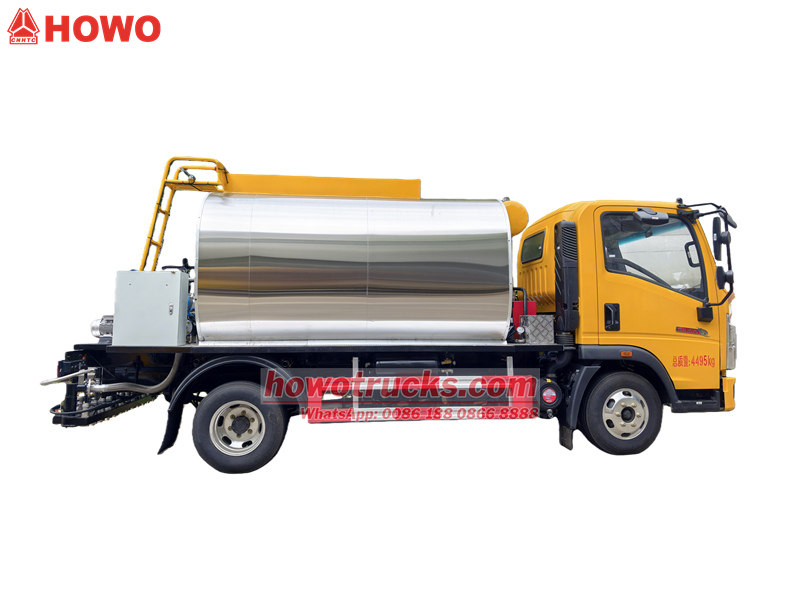

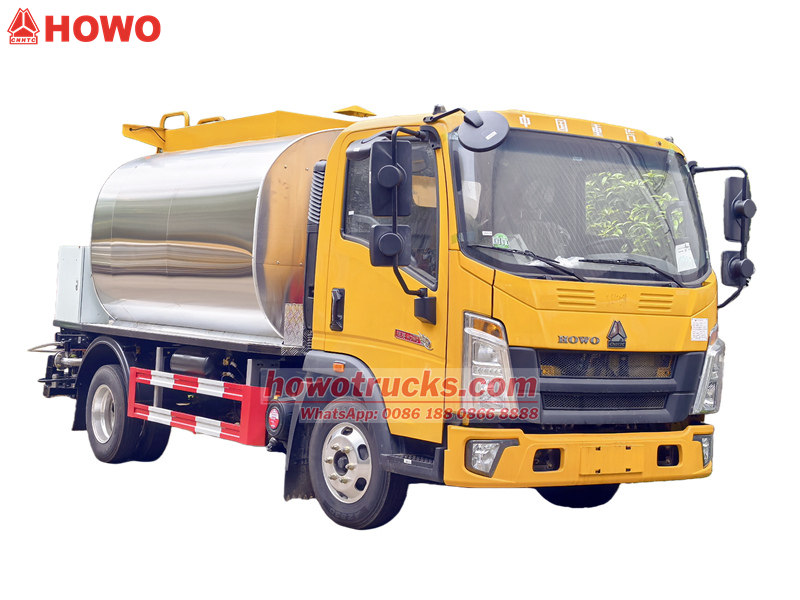

Howo light duty asphalt distributor truck |
||
|
Vehicle Description |
||
|
Vehicle model |
CSC51130LQC |
|
|
Overall dimensions |
6350×2500×2750mm |
|
|
GVW |
11300kg |
|
|
Curb weight |
4850kg |
|
|
Chassis Description |
||
|
Chassis brand |
Howo |
|
|
Drive system |
4x2 (left/right hand drive) |
|
|
Cab |
Howo,single row, 2 seats,with A/C |
|
|
Wheelbase |
3800mm |
|
|
Tire specification |
7.50R16 |
|
|
Tire quantity |
6 tires and 1 spare tire |
|
|
Engine |
Engine model |
YC4E140-33 |
|
Emission level |
EURO 3 |
|
|
Displacement |
4.257L |
|
|
Horse power |
140HP |
|
|
Weight |
380Kg |
|
|
Fuel |
Diesel |
|
|
Gear box |
Model |
WLY6TS55 |
|
Number of gears |
6-speed |
|
|
Brake system |
Air break |
|
|
Axle |
Front |
2.5T |
|
Rear |
5T |
|
|
Fuel tanker |
Type |
Stainless steel |
|
Capacity |
120L |
|
|
Tanker Description |
||
|
Tanker
|
Capacity |
5000L |
|
Material |
4mm steel plate, 50mm insulation layer,stainless steel outside,it can prevent the heating losing. |
|
|
Structure |
Welding, vacuum tank, Cylindrical |
|
|
Asphalt spreading width |
4.5M |
|
|
Asphalt spraying volume |
0.3~3.5L/m2 |
|
|
Number of nozzles |
36 |
|
|

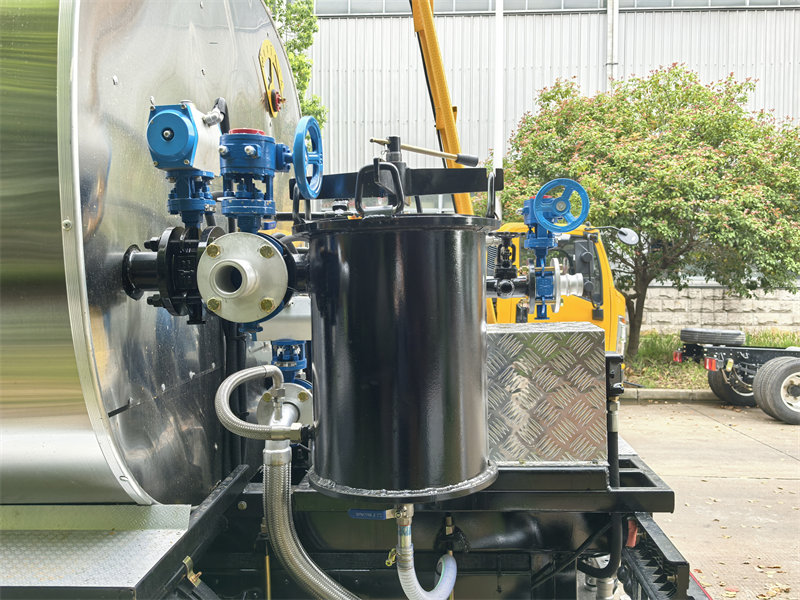

Asphalt pump |
Model |
QGB680 |
|
Flow |
680L/min |
|
|
Rating speed |
800~1000(r/min) |
|
|
Control system |
Rear work platform operation box; |
|
|
Heating method |
Heat conducting oil automatic heating |
|
|
Burner |
G20 , imported from Italy |
|
|
Generator |
6KW |
|
|
Distribution medium |
Emulsified asphalt, hot asphalt, modified asphalt, etc. |
|
✦ Ⅲ. Construction Efficiency and precision « « «

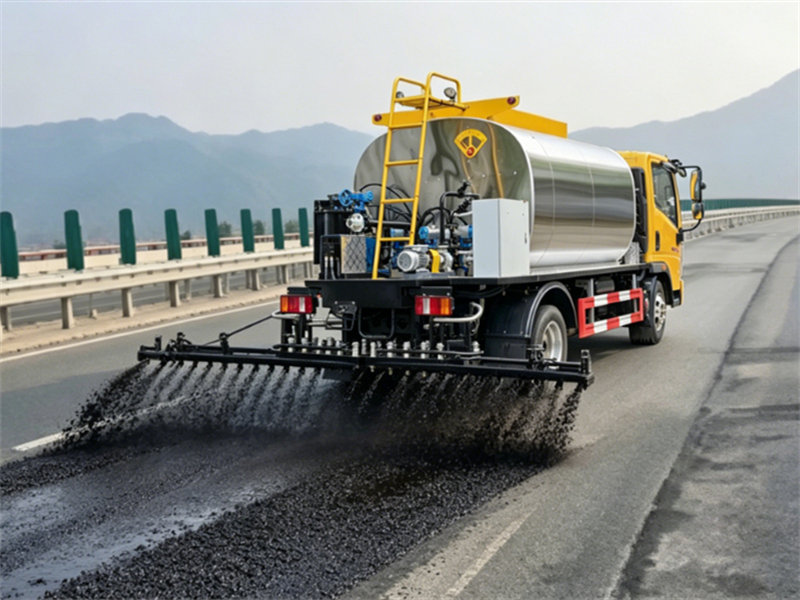

♦ Spraying width: 4.5 meters to cover the standard lane and reduce repeated operations.

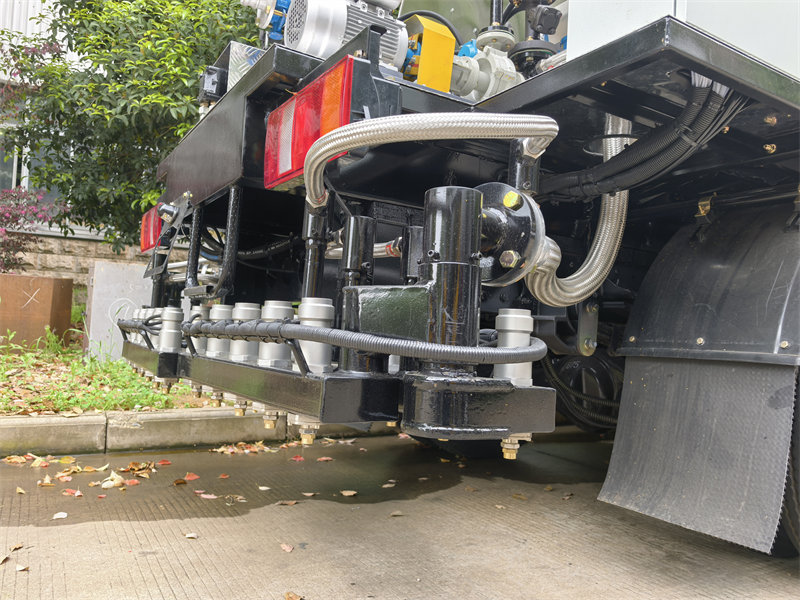

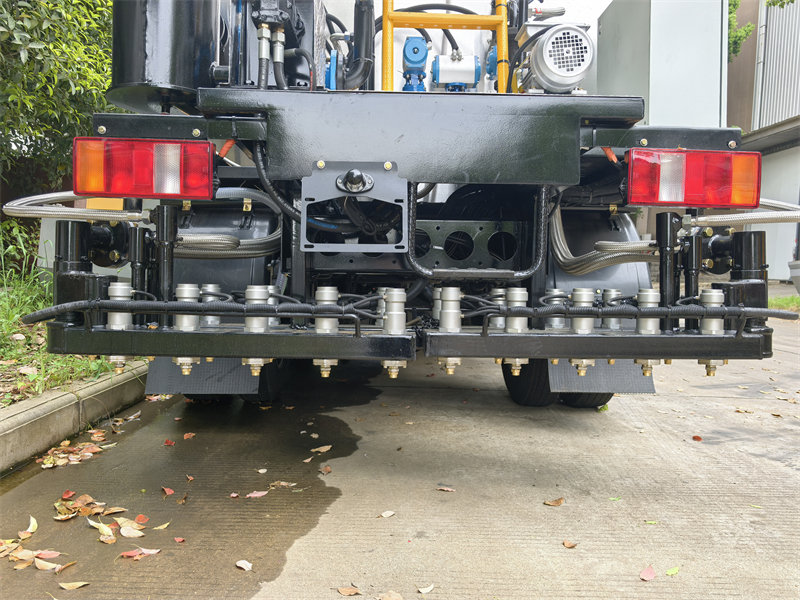

♦ Intelligent control: 36 nozzles are independently adjusted (0.3~3.5L/m²) to achieve precise flow control and adapt to asphalts of different viscosities.

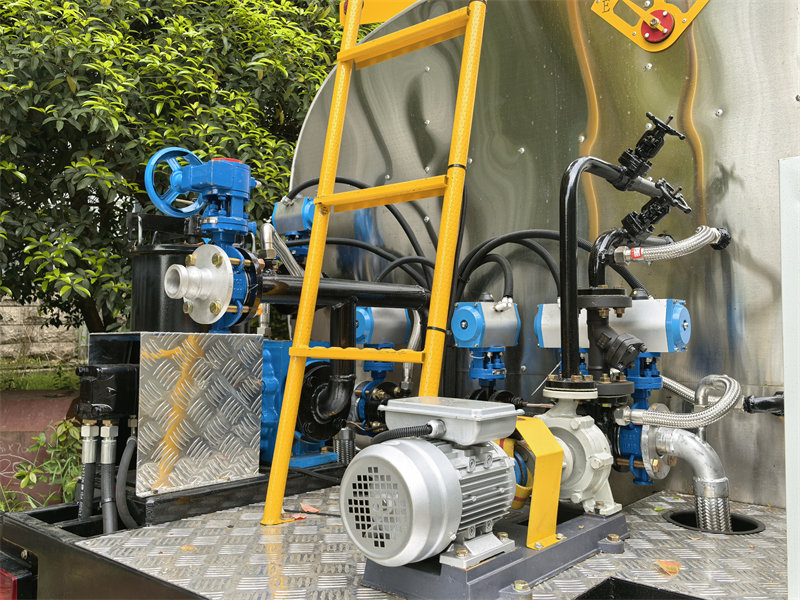

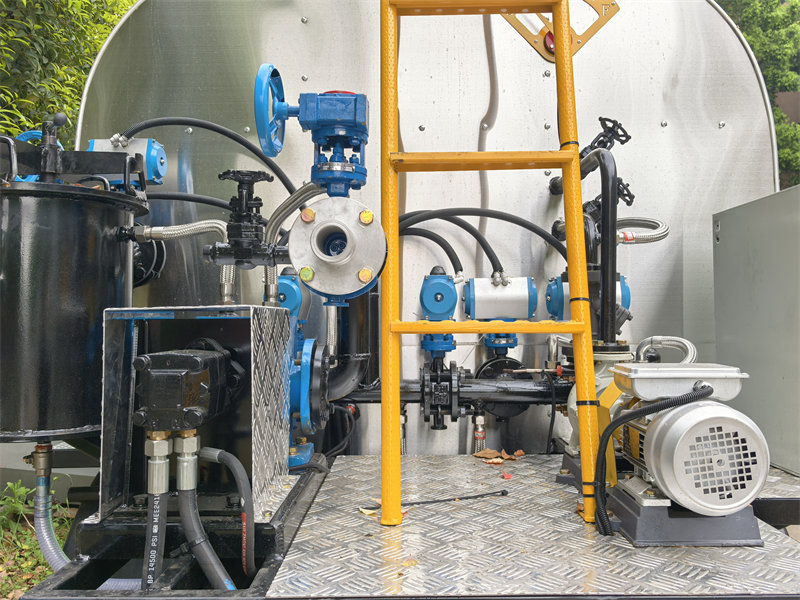

♦ QGB680 asphalt pump: 680L/min high flow, quickly complete large-area construction.
✦ Ⅳ. Asphalt Insulation and Heating Capacity « « «
♦ Automatic heating of thermal oil: uniform heating to avoid local coking, safer than direct fire heating.
♦ Italy imported burner (G20 fuel): high thermal efficiency, low failure rate, and continuous operation.
♦ Insulation layer design: the temperature drop during construction intervals is ≤2℃/hour, reducing repeated heating energy consumption.
✦ Ⅴ. Safety for Sinotruk Asphalt Spreader Truck« « «
Ergonomics and safety:

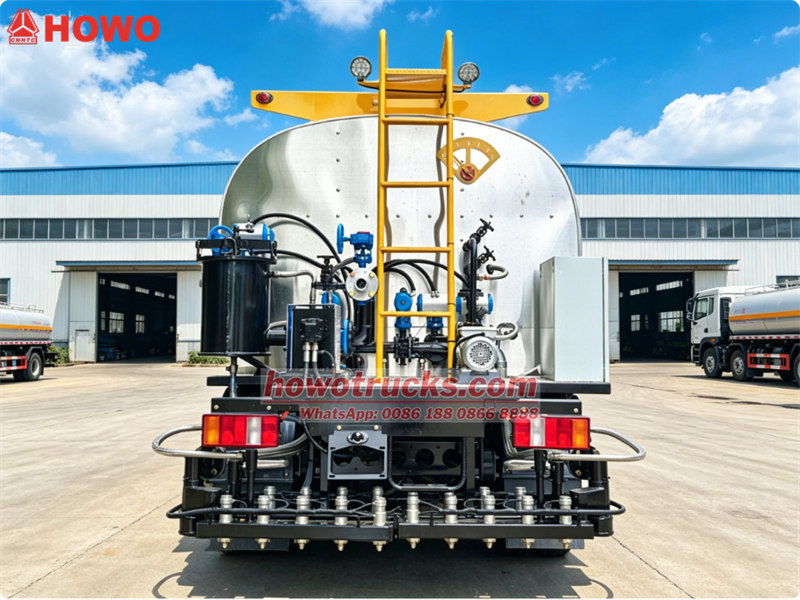

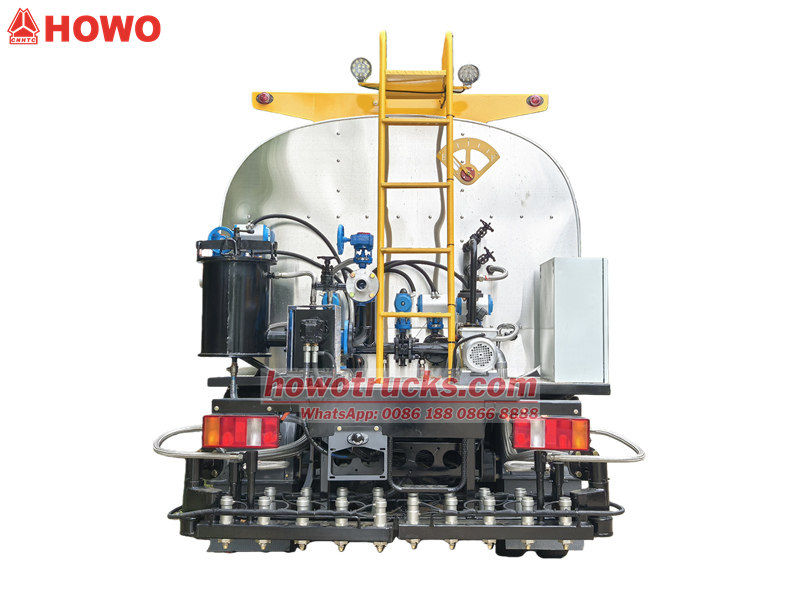

♦ Rear operating platform + control box: personnel stay away from high-temperature areas and remotely control spraying parameters.
♦ Air brake system: fast response speed, and the braking distance under full load conditions is shortened by 30%.
♦ 6KW generator: provides independent power for control system and lighting, avoiding chassis battery depletion.
Maintenance and economy:
♦ Universal chassis accessories: HOWO chassis maintenance network covers a wide range, reducing downtime.
♦ Stainless steel tank + anti-corrosion design: anti-asphalt corrosion, life expectancy increased by more than 50%.
♦ Low maintenance design: Asphalt pump and burner use mature imported components, and the failure rate is controllable.
✦ Ⅴ. Safety for Sinotruk Asphalt Spreader Truck« « «
♦ High-grade highway construction: During the application of tack coat, primer coat, and seal coat, precise control of the application rate of modified asphalt and heavy-traffic asphalt ensures interlayer bond strength and prevents later pavement defects such as shoving, cracking, and water damage.
♦ Municipal/rural road construction: Narrow roads can be precisely sprayed on a single lane, while wide roads allow for multi-vehicle collaborative operation, eliminating the need for manual patching. The resulting pavement is smooth and durable, significantly reducing rework rates.
♦ Material cost control: Precise quantity control avoids asphalt waste, saving 5%-10% of asphalt materials based on the amount applied, directly reducing project costs.
»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
China professional Howo asphalt bitumen distributor Truck supplier and exporter. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
♦ Maximize save your sea freight.
♦ Professional guidance on your importing documents.
♦ Safety, Quickly, Timely
