Sinotruk HOWO towable water truck with sprinkler

Sinotruk HOWO towable water truck with sprinkler

The Howo 6x4 water tanker is equipped with a WD615.47‌ inline 6-cylinder, 6-stroke engine featuring supercharged, intercooled, and water-cooled technology. It delivers 400 HP and a maximum torque of 1550 Nm, available at 1500 rpm and rated at 1900 rpm, ensuring the Howo heavy water tanker's powerful power for starting and climbing. The Howo cabin features a one and a half row design with two seats and a sleeper. Equipped with A/C and radio, it provides a comfortable driving environment while also supporting long distance water transport missions.

  • Kapasitas kerja :

    20000 liters
  • Jenis kabin :

    HOWO single cabin with sleeper and A/C
  • Sistem penggerak :

    6×4
  • Jarak sumbu roda (mm) :

    11300*2580*3250 mm
  • Khusus untuk mesin :

    371HP/WD615.47
  • Kotak roda gigi :

    HW19710, 10 Forward & 2Reverse
  • Gandar depan (Kg) :

    7.5T
  • Gandar belakang (Kg) :

    13 T*2
Produk Baru

The HOWO TX 20000L water tanker truck is a heavy duty special purpose vehicle designed specifically for large-scale sanitation operations. It adopts a 6×4 heavy duty drive configuration, and its reasonable body proportions ensure both driving stability and operational flexibility. The Sinotruk water truck's core configuration focuses on three core requirements: "efficient operation, stable reliability, and comfort and convenience."

It is equipped with a WD615.47‌ dedicated engine, matched with an HW19710 transmission, and features a large-capacity 20000L oval tank. It also integrates a complete set of operating devices, including front spray nozzles, a rear working platform, a water cannon, and rear spray nozzles, enabling multi-scenario, all-around watering, dust suppression, and washing operations, perfectly adapting to various sanitation work conditions.



HOWO 6x4 water truck

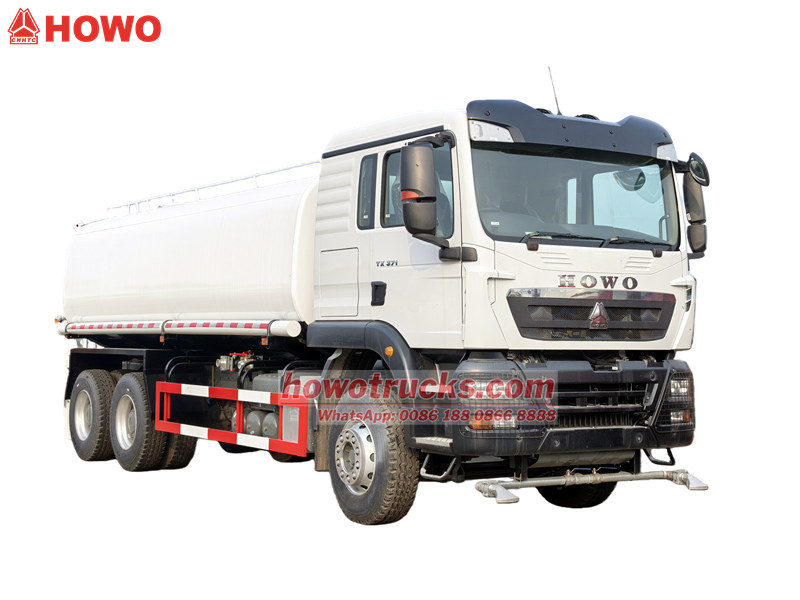

*HOWO TX 6x4 Water Tanker Truck

 Sinotruk HOWO Towable Water Truck With Sprinkler*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.





Ⅰ.Product Defination and Introduction «««

Manufacturer: CS TRUCKS Group

Features:

1. Truck Chassis: Howo heavy truck chassis, 6X4 or 6x6 model

                              Wd model with 371HP and Euro 2,3



2. Tank material: 6mm thick stainless steel for prolonged service lier
                             carbon steel, aluminum alloy can be choose



3. Water Pump: China TOP water pump, flow rate 60L/s, working distance over 40m
                           Optional famous Imported
pump

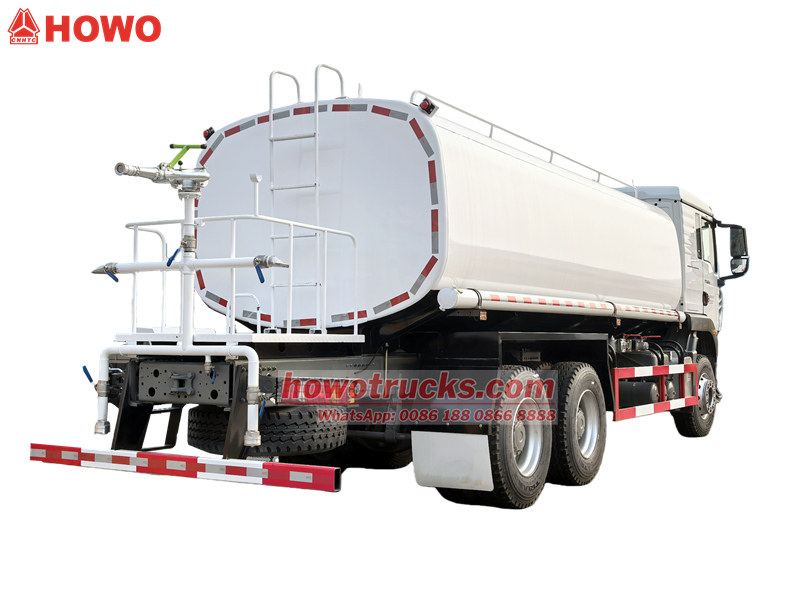

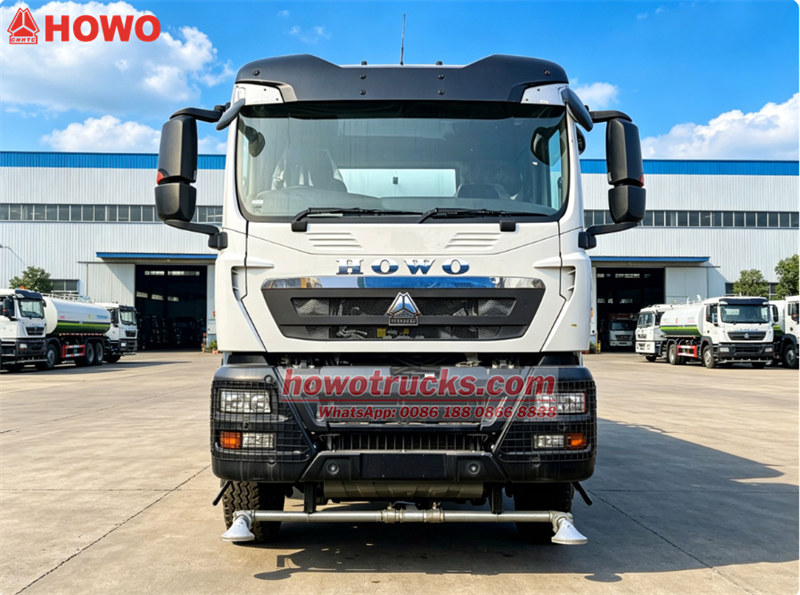

Howo TX 6x4 water tank truck



Ⅱ.Parameter for Howo TX Water Bowser Truck «««

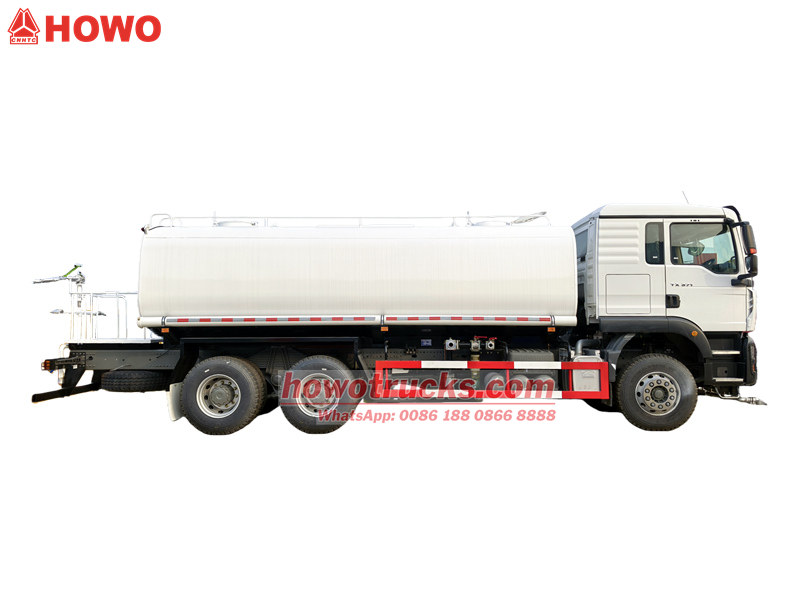

Howo 6x4 heavy water tank truck





Howo heavy 20000L water tanker

Main parameter

Overall dimension(LxWxH)

11300*2580*3250mm

Wheel base(mm)

4600+1350mm

Driving Type

6×4,left hand drive

Color

White,blue,green,color can choose

Front/rear overhang

1535/2215

Max speed

100 km/h

Weight in KGS

GVW

25000 kg

Curb weight

11500 kg

Loading capacity

16000L

Front axles loading capacity

7.5T

Rear axles loading capacity

16 T*2

Engine

Engine model

WD615.47

Engine type

Inline 6-cylinder 4-stroke, supercharged, intercooled, water-cooled

Horsepower

371HP

Max. output (kw)

273Kw

Rated speed

2200rpm

Maximum Torque

1500N.m

Displacement(L)

9.726 L

Emission standard

Euro 2

Transmission

HW19710,10 forward ,2 reserve

Tire

12.00R20 standard tire,10 tires+1 spare tire

Brake

Air brake

Steering

Power steering

Body

Capacity

20000L

Structure

TANK MATERAIL

6mm,Q235 stee

Pipe

Galvanized pipe

Discharge nozzle

SS,at side bottom of tank,quick coupling

Discharge nozzle option

Stainless steel faucet

Water pump

Model

WEILONG 80QZF-60/90S pump

Flow rate(L/m):

60m3/h

Head of delivery(m)

90m

Self-priming function(min/4m)

1.5

Efficiency(%)

95%

Related rotate speed(r/min)

1180

Matched power(kw)

22

Water sprinkler system

Front sprinkler jet

14m

Rear sprinkler jet

13m

Rear sprinkler nozzle range

12m

Water cannon range

45m

Water time

5 minutes

Working condition

Flow≥60L/m, 1.55Mpa

Max working pressure

≥0.9Mpa



Ⅲ.Advantage for Howo Heavy Chassis «««

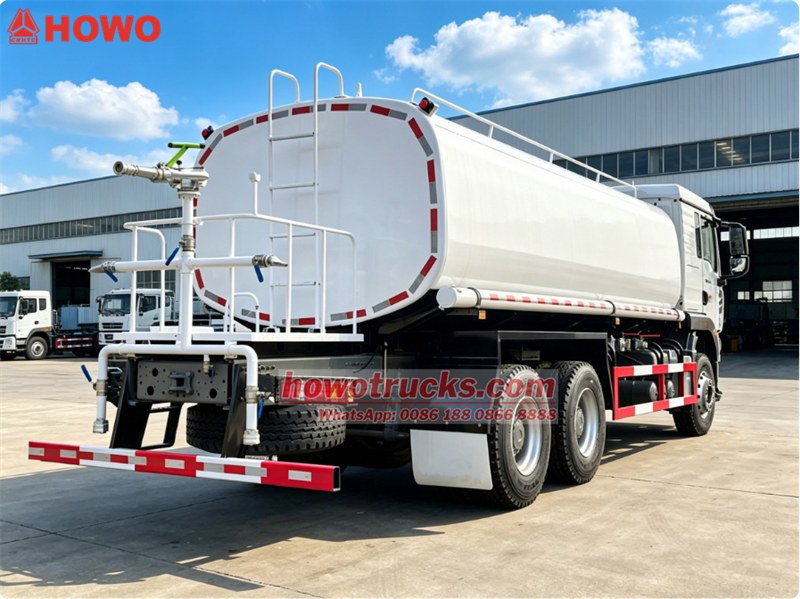

HOWO 20000L water tank truck

1. Powerful Powertrain:

The Howo water tank truck is equipped with a WD615.47 inline 6 cylinder 4 stroke engine, employing turbocharging, intercooling, and water-cooling technologies, with a displacement of 9.726L.

It delivers a maximum output of 273kW (371 HP) and a maximum torque of 1500N.m at a rated speed of 2200rpm. Compared to similar models, the engine's core advantage lies in its high torque output at low speeds, providing strong power without requiring high RPMs.

It is perfectly suited for complex operating conditions such as starting, climbing hills, and driving fully loaded with water. Whether on steep urban roads or during smooth driving with a full load of 20,000L of water, it ensures stable power output.



HOWO 20000L water tank truck

2. High-Load-Bearing System:

The front axle has a load-bearing capacity of 7.5T, and the rear axle has a dual bearing load-bearing capacity of 13T×2, fully adaptable to the full-load requirement of 20,000L of water.

The 6×4 drive configuration further enhances the vehicle's load bearing stability and passability, ensuring smooth driving on both flat urban roads and complex terrains such as suburbs and construction sites.

The entire vehicle structure has undergone rigorous mechanical design and testing, relying on Sinotruk's powerful technical database to ensure stable performance even under long-term full-load operation and frequent start-stop conditions.



✦Ⅳ.Efficient Operating System of Howo Water Sprinkler «««

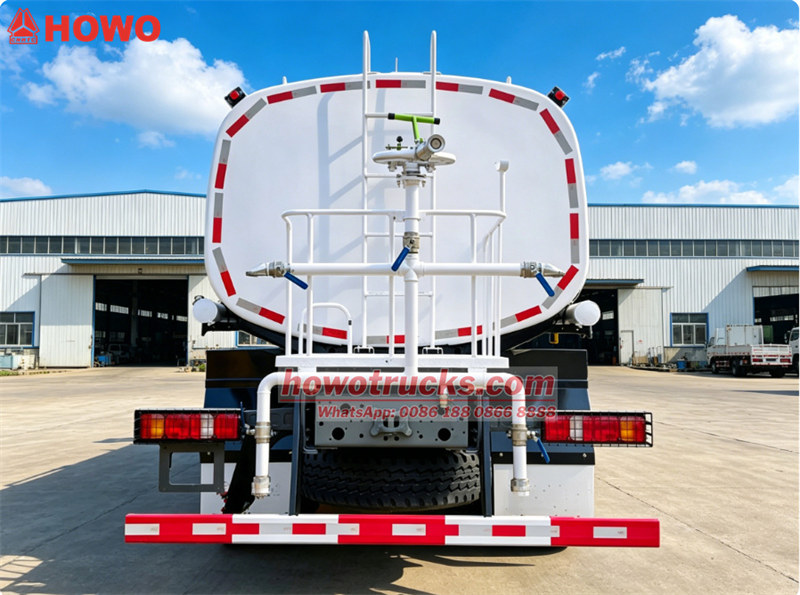

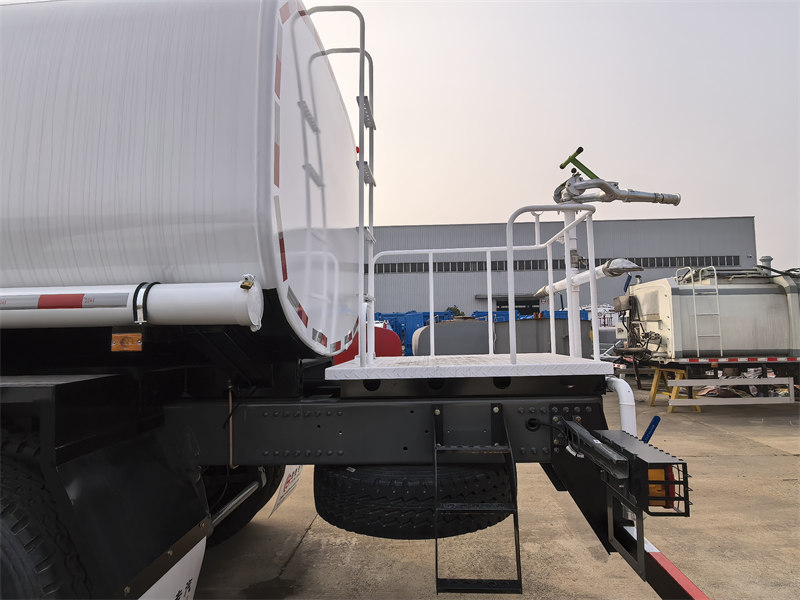

Equipped with front and rear spray nozzles, a water cannon, and a rear-mounted work platform, forming all-around operational coverage.

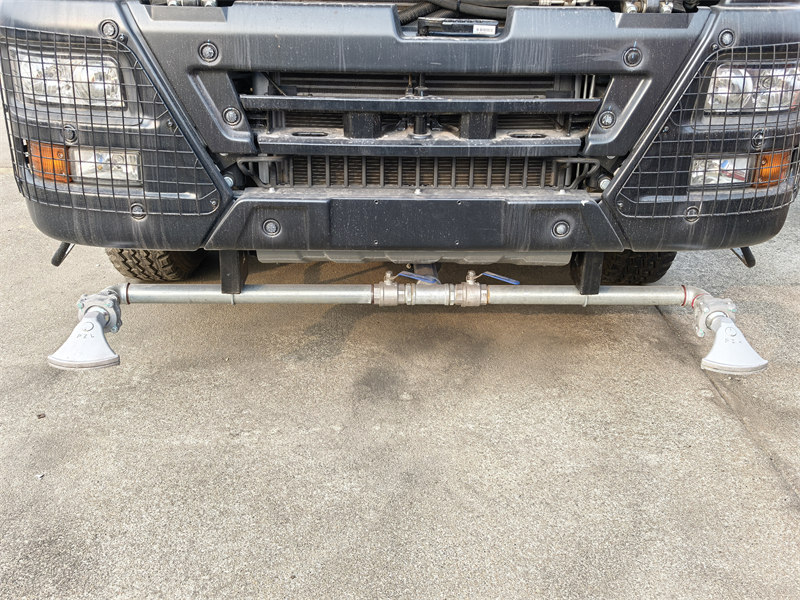

The front spray nozzles have a spray distance of up to 14m, quickly washing away road stains and mud, achieving full road surface washing.

The rear spray nozzles have a spray distance of 13m, and combined with the 12m coverage of the rear spray nozzles, they can perform secondary cleaning of the road surface, avoiding any omissions.

The water cannon has a spray distance of up to 45m, and the spray angle and water volume can be flexibly adjusted, enabling both high-altitude dust suppression and washing of green belts and high-altitude facilities.



  • Howo water tank truck
  • Howo water tank truck
  • Howo water tank truck





✦Ⅴ.Water Pump of Howo Heavy Water Sprinkler Truck «««



WEILONG water pumps offer advantages such as strong self-priming capability and high head, enabling rapid water filling and reducing waiting time. They also provide stable water delivery, preventing leaks and insufficient pressure, ensuring continuous operation.

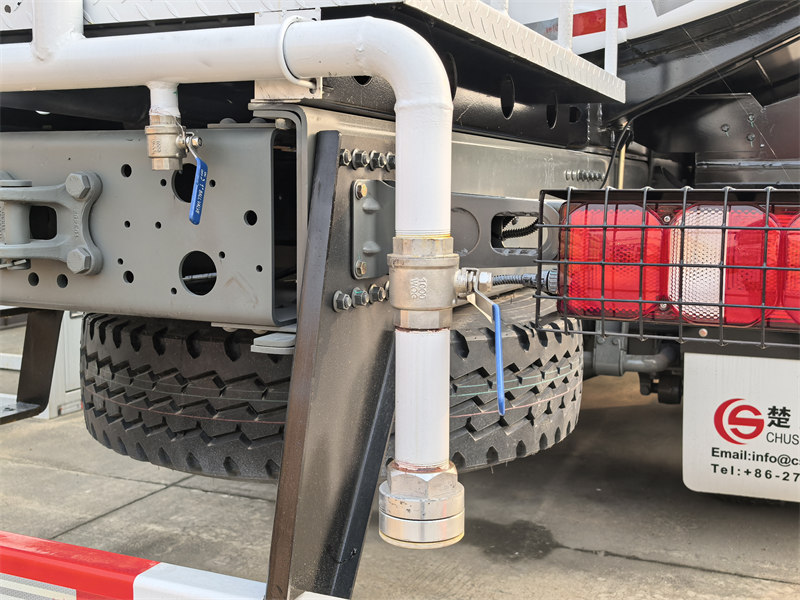

Furthermore, the piping is galvanized, the discharge nozzle is stainless steel, and quick-connect fittings are included. Optional stainless steel faucets are also available. These features enhance corrosion resistance and ease of maintenance, further extending the lifespan of the operating system.

  • Howo 20000L water tank truck
  • Howo 20000L water tank truck
  • Howo 20000L water tank truck



Model

Flow rate (m³/h)

Head (m)

Speed (r/min)

Shaft power (KW)

NPSHr (m)

Self-priming time (min/4m)

Efficiency (%)

80QZBF-60/90N(S)

60

90

1180

22.5

4.5

1.5

70

65QZ-40/45N(S)

40

45

1450

9.25

4.5

1.5

72

65QZ-50/50N

50

50

1180

10.5

4.5

1.5

70

65QZBF-50/110N(S)

50

110

1450

24

-

-

70





.Application of Howo Water Sprinkler Truck «««

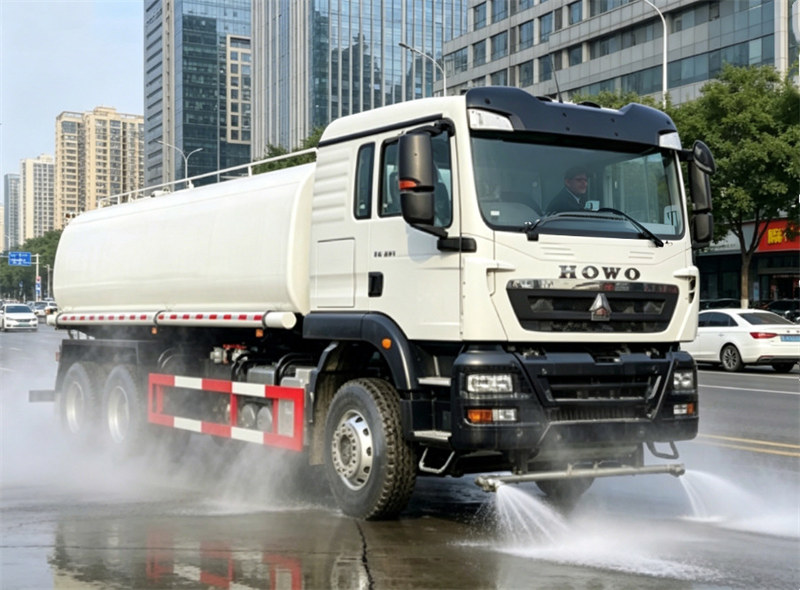

Howo TX heavy 20000L water tank truck

1. Urban Road Sanitation Operations:

Daily watering, dust suppression, and washing of large areas of urban main and secondary roads, industrial park roads, and city squares. Especially suitable for densely populated areas with high traffic volume, this equipment is a core component for urban air pollution control and road cleaning.

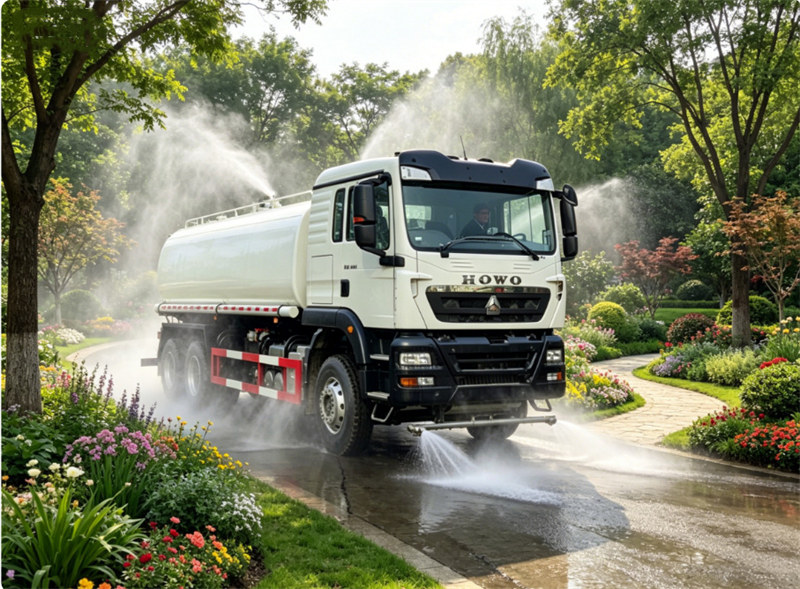

Howo TX heavy 20000L water tank truck

2. Landscaping and Green Space Maintenance Operations:

Irrigation and watering operations in urban parks, green belts, large nurseries, and green belts along highways, as well as spraying for pest and disease control of green plants.






The production capacity of over 4,000 trucks every year.



Over 100 countries worldwide.



Complete after-sales service system.



We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.



China professional Howo special truck supplier and exporter, we supply high quality Howo special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Howo trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely



Howo TX heavy 20000L water tank truck
